쇼아 경도계

shore durometer

Time TH210 Shore D Hardness Tester is a pocket-sized Digital Shore D Durometer with integrated probe for testing the material hardness of harder materials, including hard rubbers and plastics such as acrylic, pvc, nylon, lexan, and epoxies. Hardness values can be downloaded from the TH210 Hardness Tester to computer using the optional RS232 download cable.
An optional instrument stand is also available for the TIME TH210 Hardness Tester. The handle on the TH210FJ operating stand applies an even force to the test sample, eliminating error caused by operators applying excess manual force. Test height can be adjusted to accommodate different test sample thicknesses.
Features of the Time TH210 Shore D Hardness Tester:

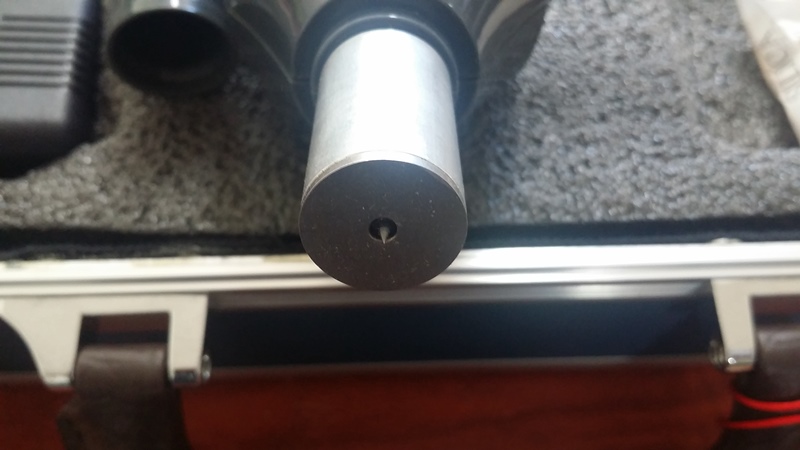

• pocket-sized Shore D Digital Hardness Tester with integrated probe
• bright LCD display
• displays hardness result, average and maximum hardness values
• peak value lock
• battery indicator
• measuring range of 0 - 100 HD
• 300 hours of operation with standard batteries
• automatic shut-off
• conforms to standards: DIN 53505, ASTM D2240, ISO 7619, JIS K7215
• manufacturer's certificate of conformity
• optional 4.5 v AC/DC adaptor

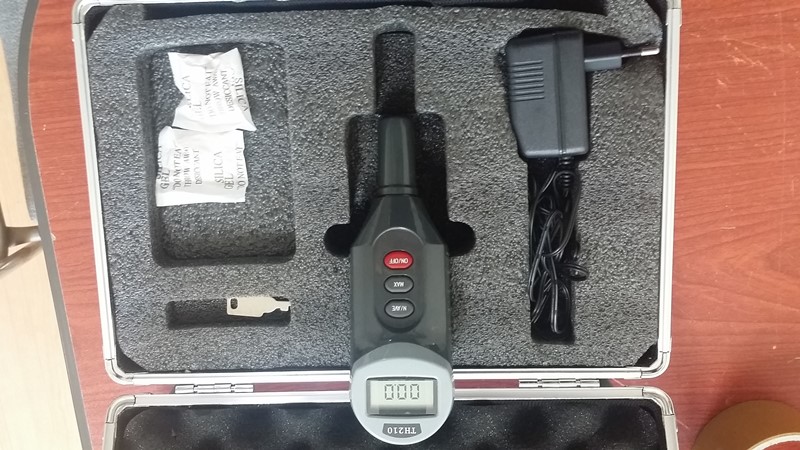

The Time TH210 Hardness Tester comes complete with one TH210 Shore D Hardness Tester, batteries, instruction manual, TIME certificate, and warranty card.

Optional accessories include:

• RS232 download cable
• TH210FJ operating stand
• AC/DC adaptor
